Supported video cards

Following SDI video cards are natively supported in QTAKE. Additionally, QTAKE can capture video coming from NDI® (NewTek™), RTSP (Teradek Cube), QLS (QTAKE Live Stream), or video cards supported by the macOS system, such as USB-3 connected Teradek Bolt Receiver.

Single channel video cards:
  • AJA – Kona LHi
  • BMD2 – Ultrastudio 4K3, Mini Recorder, Ultrastudio Express
  • Deltacast – DELTA-3G-elp 10, DELTA-3G-elp 113
Dual channel video cards:
  • AJA1 – IoXT
  • BMD2 – Decklink Duo, Decklink Duo 23
  • Deltacast – DELTA-3G-elp 20, DELTA-3G-elp 223
Four channel video card:
  • AJA1 – Io4K, Io4K Plus, Kona 4, Corvid 44, Corvid 88
  • BMD2 – Decklink Quad, Decklink Quad 23, Decklink 8K Pro3
  • Deltacast – DELTA-3G-elp 40, DELTA-3G-elp 8c3

1. AJA multi-channel cards (except Corvid) are limited to formats of the same clock family, live passthrough requires genlocked signals
2. BMD cards donʼt support ARRI/SONY record flag
3. Full duplex video card, provides simultaneous input and processed output

Hardware configurations

Following configurations are recommended to achieve optimal performance of QTAKE. Performance varies greatly depending on the selected video codecs and image processing requirements. Generally, we recommend getting the top of the line Mac models in order to allow enough headroom for complex projects.

QTAKE Lite

CPU:
Intel quad-core i7
RAM:
8GB memory
GPU:
Intel Iris Pro Graphics or higher
Media storage:
External USB 3 or Thunderbolt Drive5
Video casrd I/O:
2x AJA IoXT alternatives
QTAKE LITE requires two 1-channel or one 2-channel video card. In case of live processing, either two full duplex or two 2-channel cards are required.

Analog audio IO:
FOCUSRITE Scarlett 2i28

QTAKE HDx1

CPU:
Intel dual-core i7
RAM:
8GB memory
GPU:
AMD Radeon R9 or higher
NVIDIA GeForce GT 650M or higher
Media storage:
External USB 3 or Thunderbolt Drive5
Video card I/O:
1x AJA IoXT alternatives
QTAKE HDx1 requires one 1-channel video card. In case of live processing without QOD+, either one full duplex, or two 1-channel, or one 2-channel card is required.

Processed GPU output:
IN2CORE QOD+
Analog audio IO:
FOCUSRITE Scarlett 2i28

QTAKE HDx2

CPU:
Intel quad-core i7
RAM:
8GB memory
GPU:
AMD Radeon R9 or higher
NVIDIA GeForce GT 750M or higher
Media storage:
External USB 3 or Thunderbolt Drive5
Video card I/O:
2x AJA IoXT alternatives
QTAKE HDx2 requires two 1-channel or one 2-channel video card. In case of live processing without QOD+, either one full duplex 2-channel, or one 4-channel, or two 2-channel cards are required.

Processed GPU outputs:
IN2CORE QOD+
Analog audio IO:
FOCUSRITE Scarlett 2i28

QTAKE HDx4 / 4Kx1

CPU:
Intel 6-core Xeon
RAM:
16GB memory
GPU:
AMD FirePro D500 or higher
Media storage:
External USB 3 or Thunderbolt Drive6
Video card input:
Deltacast DELTA-3G-elp 40 alternatives
QTAKE HDx4 requires two 2-channel or one 4-channel video card. In case of live processing without QOD+, either one full duplex 4-channel or two 4-channel cards are required. QTAKE 4Kx1 requires 4K video card. In case of live processing without QOD+, either one 4K full duplex or two 4K cards are required.

Processed GPU outputs:
IN2CORE QOD+
Analog audio IO:
FOCUSRITE Scarlett 2i28

QTAKE HDx8 / 4Kx2

CPU:
Intel 8-core Xeon
RAM:
16GB memory
GPU:
AMD FirePro D700 or higher
Media storage:
External USB 3 or Thunderbolt Drive7
Video card input:
2x Deltacast DELTA-3G-elp 40 alternatives
QTAKE HDx8 requires two 4-channel video cards. In case of live processing without QOD+, two full duplex 4-channel cards are required. QTAKE 4Kx2 requires two 4K video cards. In case of live processing without QOD+, two 4K full duplex cards are required.

Processed GPU outputs:
2x IN2CORE QOD+
Analog audio IO:
FOCUSRITE Scarlett 2i28


5. Recommended read/write speed of 150 MB/s
6. Recommended read/write speed of 300 MB/s
7. Recommended read/write speed of 600 MB/s
8. Optionally any external audio card with Core Audio driver

The ultimate QTAKE Output Device.

QOD+ provides superior hardware solution for GPU driven video output. It converts DisplayPort output to four SDI outputs supporting all standard frame-rates, up to 60fps.

QOD+ is controlled directly by QTAKE software to provide smooth, jitter-free video output with embedded audio and timecode.

This unique custom-made device is compatible with every version of QTAKE, from HDx1 up to HDx4 or with two QOD+ devices up to HDx8/4Kx2.

Warranty Policy »

Order now  Download brochure


Features

  • 4 independent SDI outputs
  • Very low latency of just 1 frame*
  • SDI embedded audio
  • SDI embedded timecode
  • Thunderbolt compatible DisplayPort input
  • Analog audio input
  • Genlock input
  • Support for HD-SDI and 3G-SDI formats
  • Interlaced, Progressive or PsF output
  • 4K output support up to 60fps
  • USB control directly from QTAKE software
  • DIP switch control for standalone operation
  • Single, compact, DC powered unit
  • Future-proof design upgradable by firmware
  • Fanless design for entirely silent operation

Tech specs

Video Input: DisplayPort with embedded audio
Reference Input:
HD Tri-level sync
Input formats:
HDx2 3840 x 1080, HDx3 1920 x 3240, HDx4 3840 x 2160
Video Output:
4x 3G-SDI with embedded audio, DisplayPort with embedded audio
Audio Input:
DisplayPort embedded audio, 3.5mm stereo analog audio
Dimensions:
117 x 168 x 43mm (4.6” x 6.6” x 1.7”), Weight 780g
Power:
Universal Power Supply (included)
100-240V, 50/60Hz AC input, 12V, 24W max DC output

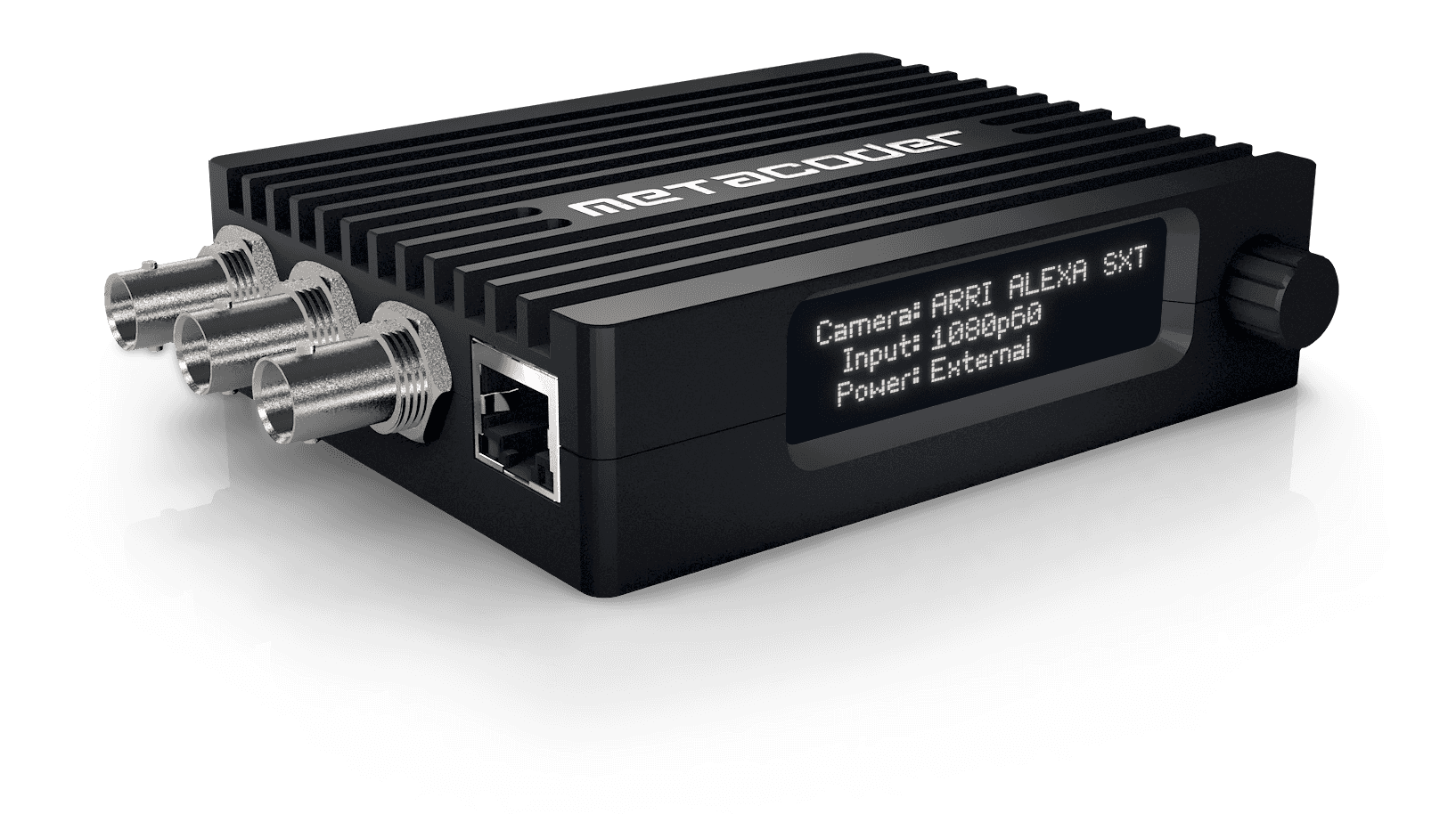

Wireless camera metadata solved.

All on-set video professionals know that wireless transmitters strip out metadata from the camera output.

Digital cinema cameras use ancillary space of the SDI signal to output timecode, record flag, filename and other valuable information. Unfortunately, wireless devices will not transport this part of the SDI signal.

MetaCoder solves this problem by processing metadata in a way that preserves it regardless of the wireless sender. Just place the MetaCoder in the chain between the camera and the transmitter and you’re done. QTAKE will now be able to read the metadata, just like if it was connected to the camera using the SDI cable.

Order now  Download brochure


Features

  • Zero latency metadata processing
  • Camera model auto-detection
  • Support for ARRI and SONY cameras (RED support coming soon)
  • SD/HD/3G-SDI input and outputs
  • Loop-through
  • Optional network connection to camera
  • OLED status display
  • Rotary push knob menu control
  • Internal battery to allow hot-swapping power cables
  • Future-proof design upgradable by firmware
  • Fanless design for entirely silent operation

Tech specs

Video Input:
3G-SDI
Video Outputs:
3G-SDI with processed metadata
3G-SDI loop-through
Data ports:
Ethernet
USB-C
Power:
2-pin Lemo connector
Internal Battery

Turn your iPad into
professional monitor & recorder

iOS devices feature amazing displays that often exceed the quality of dedicated portable and on-board SDI monitors. In addition to color accuracy, wide gamut, and slim form factor, they offer responsive touchscreen interface and incredible computing power. But they lack video input.

ScreenPort SDI adds video input to iPad, iPhone or Mac and turns it into professional 3G-SDI monitor capable of capturing up to 1080p60 video feed with your personal portable device. ScreenPort app provides video controls, analysis and recording tools unmatched by most professional monitors.

Now shipping!
Learn more at screenport.io

Order now  Download brochure


Features

  • Video, audio, metadata monitoring & recording
  • Auto-recording using camera SDI flags
  • Streaming to remote monitors over internet
  • Compatible with QTAKE applications
  • Battery powered operation
  • Bus-powered operation when using Mac
  • Wired and wireless connection to host devices
  • Preloaded and custom 3D LUT processing
  • Predefined and custom frame-lines
  • Waveform, vectorscope and histogram analysis
  • Focus peaking and customizable false color
  • Calibration using X-Rite ColorTRUE system
  • Future-proof design upgradable by firmware

Tech specs

Video Input / Output:
3G-SDI / 3G-SDI loop-through
Data ports:
Ethernet
WiFi
USB-C
Power:
USB-C power adapter
External batteries
Dimensions:
115 x 85 x 30 mm (4.53″ x 3.35″ x 1.18″)
Weight:
160 g (0.35 lb)

Smart Assist 4

  • A portable solution from Europe-based company Ovide
  • Built-in full HD touchscreen
  • 4 inputs, 12 fully routable outputs
  • 4k/HD
  • Battery powered, Internal UPS
Read more » Ovide_Smart_Assist_4

Nebtek NX2

  • Designed by Nebtek and manufactured in the USA
  • 2 camera laptop expansion case
  • Light weight aluminium alloy chassis
  • Packed with all essential tools
Read more about NX2 and other solutions »
Nebtek_NX2

Deltacast develops and manufactures state-of-the-art products for the professional digital video market. Video boards from Delta-3G series are the perfect match for QTAKE systems, because they provide truly independent channels that can accept any combination of SDI formats. Deltacast cards with output connectors provide full-duplex operation, allowing simultaneous input and output for each channel. Following models are now directly available from IN2CORE:



DELTA-3G-elp 40

DELTA-3G-elp-d 22


DELTA-3G-elp-d 8c


DELTA-3G-elp-d 4c

Inputs/Outputs4/02/28/84/4
Full-Duplex Channelsn/a242
SDI Passthrough
SDI Format3G3G3G3G
4K Input/Output
Independent Inputs
RED SDI Metadata
Arri/Sony Record Flag
Arri/Sony/Canon Metadata
Timecode
InterfacePCIPCIPCIePCIe
GET A QUOTEGET A QUOTEGET A QUOTEGET A QUOTE
